Multi Axis Systems- endless design possibilities

Multi axis and gantry systems are custom designed to solve specific application challenges.

Essential in today’s industrial world, and they play an increasingly significant role in machine construction.

Complex multi axis systems are essential in today’s industrial world and play an increasingly significant role in machine construction.

Custom-designed to solve your specific application challenges, we offer unlimited guide and drive combination possibilities and various configurations including H, XY, XZ & XYZ. To ensure we meet your exact specifications, our experienced technical team provides comprehensive application assessment, advice, and technical support from design to delivery.

Comprehensive application assessment including cycle time analysis, lifetime calculations and motor specification
Fast quote with CAD models within 48 hours
Project fulfilment in 4 to 6 weeks
Endless product configurations

2D multi axis systems

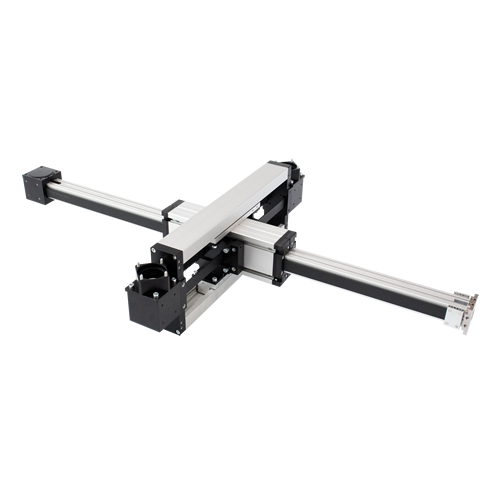

2D multi axis systems, also known as surface portals or surface gantry systems are ideally suited for 2D high-speed handling or pick-and-place applications. Our range includes pre-configured, ready-made 2D multi axis systems for XZ axes (ELZI) or XY axes (ELZU). Both are driven by a rotating belt, which remains connected through various deflection points. The ELZI range consists of one double-guided horizontal X-axis and a vertical Z-axis, and the ELZU range consists of two Y-axes and one reinforced X-axis.

High speed and fast response

As only small masses are moved with 2D multi axis systems, it is possible to achieve high accelerations.

High stability

Long-axis systems ensure very high stability and low deflection.

Long service life

Tooth belt drive technology and bearing mechanisms enable high cycle life.

3D multi axis systems

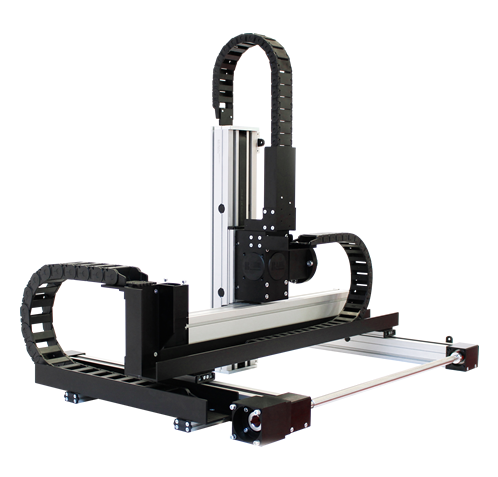

We offer custom-built multi axis systems to suit your specific application requirements. The modular nature of our multi axis systems means we can combine different profile styles, guide and drive options, and our wide range of accessories including motors, adaptors, cable chains, switches, safety brakes and clamps, to design a fully customised solution to meet your needs. With many years of experience in projects across different industries, our technical team can provide needs assessment, calculations and analysis of your application.

Exceptional technical support

We work in partnership with our customers to provide technical support from design to delivery.

Total design flexibility

We offer custom-built, application-specific solutions, that include special components such as cable drag chains where necessary.

Quick delivery

Quotes and CAD models are provided within 48 hours.

Technical specifications and options

Total design flexibility for made-to-measure multi axis and gantry systems, meaning we have a solution for nearly any application. Modular design options, high-quality products, and exceptional technical support mean this range is flexible enough to handle even the most complex multi-axis motion requirements.

Profile widths: From 30 to 200 mm
Drive options: Toothbelt, ball/trapezoidal screw, rack and pinion, linear motor
Stroke lengths: From 100 mm to 4 m
Loads: up to 300 kg
Positioning Repeatability: ± 0.025 to 0.1 mm
