Cadent™ Syringe Pump


Cadent 3 Syringe Pump

The IMI Norgren Cadent 3 Syringe Pump is a highly flexible fluid dispense pump with exceptional volume dispense accuracy and precision. This 3cm stroke length unit is compact, reliable and has unique diagnostic capabilities.


The Cadent 3 comes in three mechanical resolutions – 6K, 12K or 24K – and can be purchased with or without electronics depending on your application requirements. The pump may also be operated as a standalone device.

The Cadent™ 3 is fully compatible with our 3cm syringes and valves and so can be paired with a solenoid valve or with a rotary valve of up to 12 ports to create multiple flow paths. A choice of syringes between 50µl and 5ml complete your unit, giving you full control in achieving your desired dispense volume or flow rate.

The Cadent™ 3 pump has several unique features that make it the best choice for precise fluidic movement in life science instrumentation:

  • Industry leading low flow stability down to 1µl/min with a 1ml syringe
  • Adjustable flow rates between 0.008µl and 500ml/min
  • Extended speed range: 1/16 steps/sec to 100,000 steps/sec
  • Sustained precision and accuracy over lifetime
  • Programmable troubleshooting via smart diagnostics
  • UL/CE/CSA certified

Why choose the Cadent 3 syringe pump?


Outstanding Fluidic Performance

When it comes to the reliability and control needed for precise and accurate analysis in analytical, biotechnology, and diagnostic instrumentation, Cadent™ 3 syringe pump is one smooth operator.

With its advanced micro-stepping capabilities and resolution of up to 24,000 steps, only the Cadent™ 3 syringe pump can smoothly capture information down to 1 μL/min (with a 1 mL syringe) and has adjustable flow rates down to 0.008 μL/min. It also delivers sustained premier performance on precision and accuracy throughout its lifetime. Finding the right fit for your needs starts here.

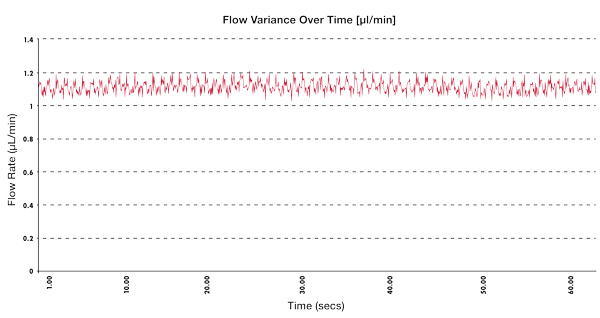

Flow rate measurements taken over a 60-second period on a 10KHz sample rate showing flow accurary/stability of ±1%.


Smarter, More Advanced Control

The Cadent™ 3 syringe pump’s superior technology allows for faster bench testing, smarter serviceability, and easier integration.

This best-in-class syringe pump was designed with a boosted encoder for optimum valve alignment for minimal flow turbulence and assured dispense volume. What’s more, its smart diagnostics allow for programmable troubleshooting and built-in error logs, while our unique interactive graphic user interface makes benchtop testing a sophisticated and user-friendly experience. Finding the right fit for your needs starts here.

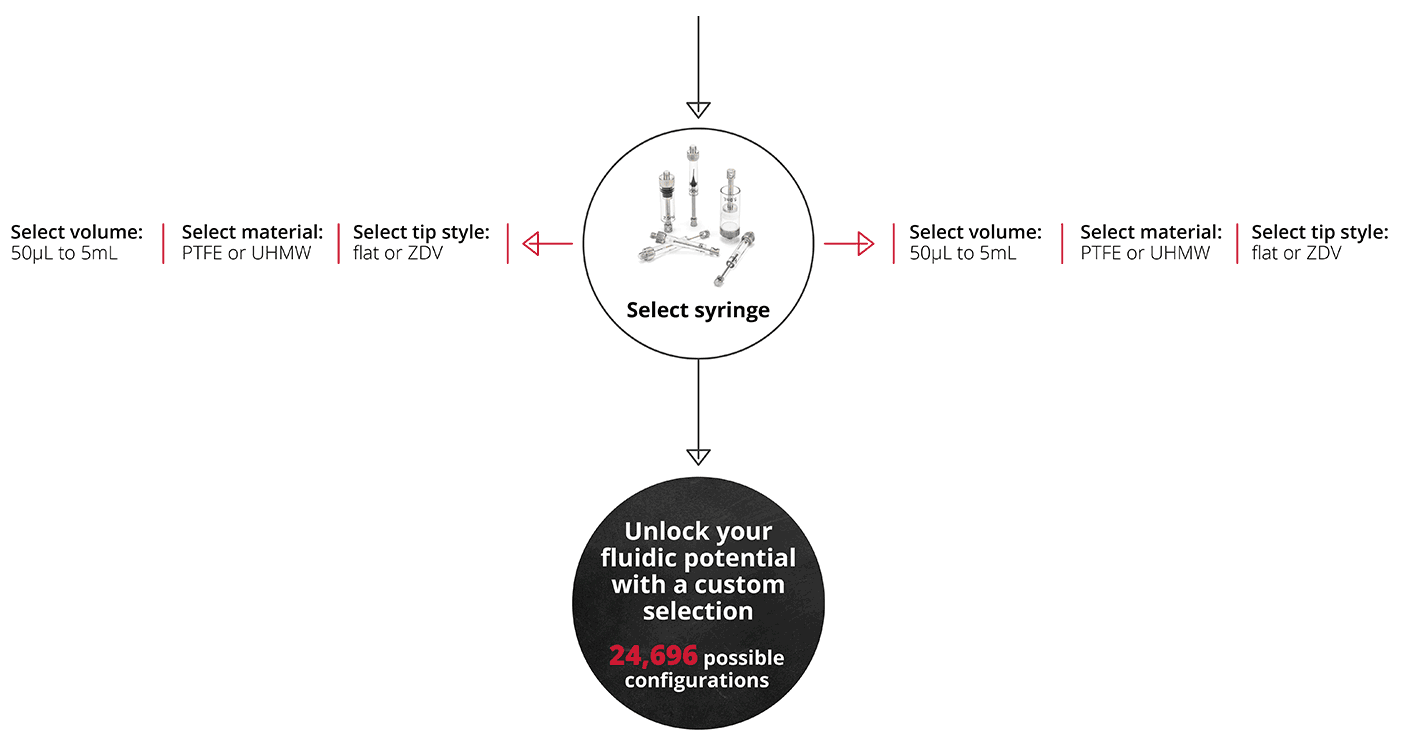

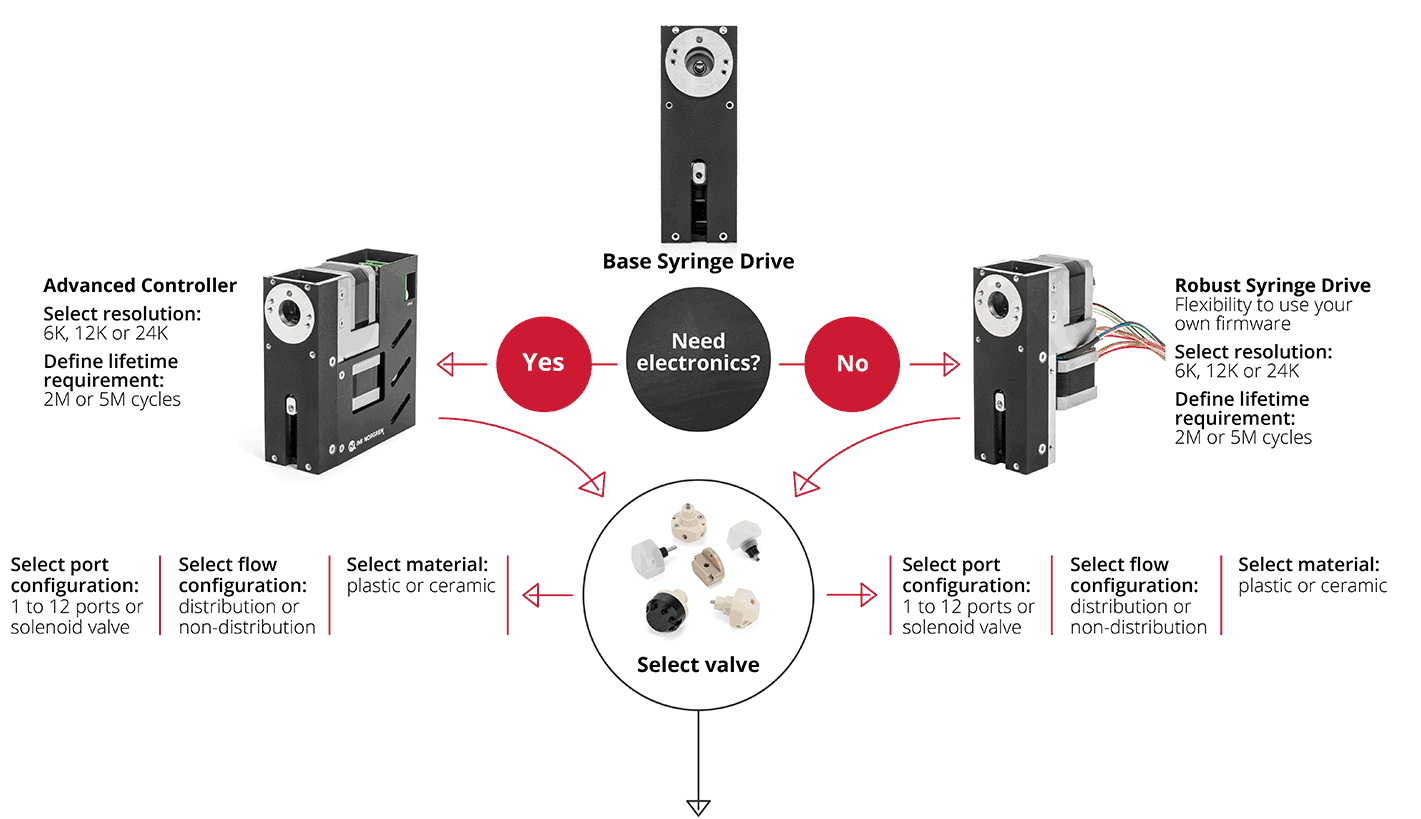

Flexible Configurations

Choose which Cadent 3 syringe pump configuration is right for your instrumentation:


Get in touch to learn more about how the Cadent 3 syringe pump can pump up your fluidic capabilities, or view our whitepapers to find out more:

Flow Stability

This white paper investigates the significance of flow stability in flow applications and presents competitive data on this key performance feature when multiple variables are introduced.


Right Sizing a Syringe Pump

Achieving the optimal fluid handling operations within a Life Science instrument is highly dependent on selecting the right product configuration. This paper introduces the key characteristics that influence such selection.
